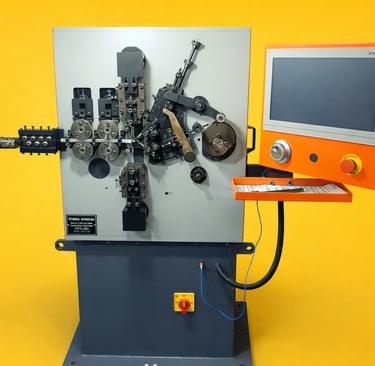

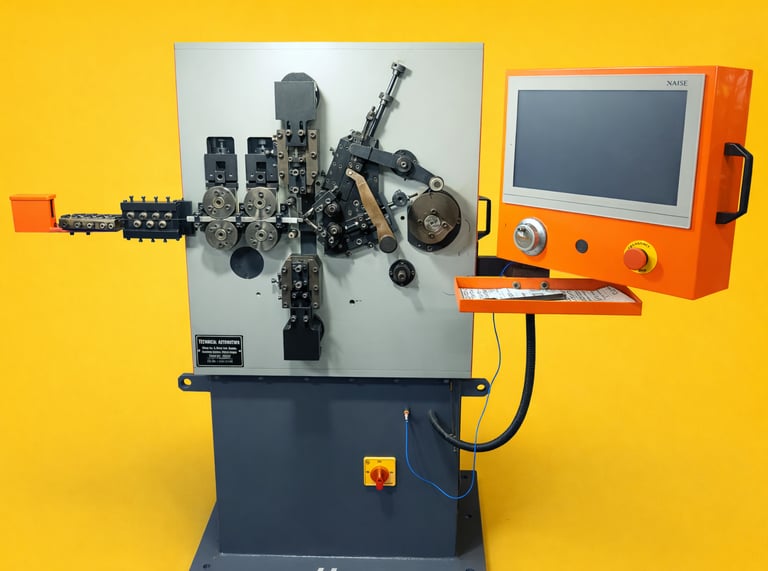

CNC Spring Coiling Machines:

The CNC Spring Coiling Machines are designed to simplify and enhance spring manufacturing with superior precision and efficiency. These machines are capable of producing a wide variety of springs, including Compression, Tension, Torsion, Taper, and Double Taper springs with ease.

Engineered for high-speed performance, this machine ensures unmatched accuracy, repeatability, and consistent output, making it ideal for demanding production environments. The advanced servo system combined with a robust mechanical structure is optimized to deliver superior spring quality across continuous operations.

A wide touchscreen control panel offers a user-friendly and feature-rich interface, enabling operators to program and manage production effortlessly. With standard pre-programmed recipes, setup time is significantly reduced, allowing for quick changeovers and increased productivity.

The camless design further enhances flexibility and simplifies machine setup, while the mandrel in-out capability supports precise control for complex spring geometries.

Standard Axes Configuration:

1. Feed Axis

2. Pitch Axis

3. Cut Axis

4. Diameter Axis

5. Inner pitch

5 Axis CNC Spring Coiling Machines

Axis: 5- axis

Spring Wire Diameter: 1.2MM TO 3.5MM

Spring External Diameter: 50mm

Spring Length: Unlimited

Voltage: 415V single Phase

Weight: 350 kgs

Standard Accessories with CNC Spring Coiling Machines :

• Vertical & Horizontal wire straightening devices

• Complete set of tooling

• RH and LH coiling devices

• Machine Lamp

Note: Specification of Machines and Design are subject to change without prior notice.
