Standard Accessories with Lathe Type CNC Spring Coiling Machines :

• Vertical & Horizontal Wire straightening devices.

• Suitable for Right or Left Hand coiled Compression, Tension, Torsion or Variable Pitch Springs

• With Auto Hydraulic Cutting arrangement

• Machine Lamp

• Manual Wire De-coiler

Optional Accessories with Lathe Type CNC Spring Coiling Machines

• Additional Tooling set

Note: Specification of Machines and Design are subject to change without prior notice.

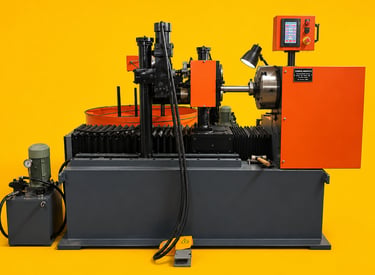

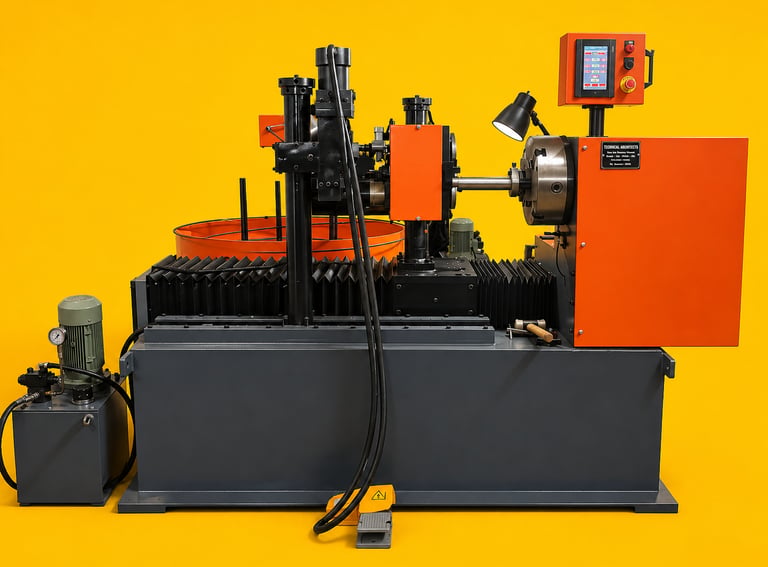

Lathe Type CNC Spring Coiling Machine

Model : LT12

Axis: 3- axis

Spring Wire Diameter: 6.0 to 12.0 mm spring steel wire

Spring External Diameter: 100mm

Spring Length: Max 1000mm with auto cutting 350mm

Voltage: 415V single Three Phase

Weight: 1800 kgs
