Standard Accessories with Lathe Type CNC Spring Coiling Machines :

• Vertical & Horizontal Wire straightening devices.

• Suitable for Right or Left Hand coiled Compression, Tension, Torsion or Variable Pitch Springs

• With Auto Hydraulic Cutting arrangement

• Machine Lamp

• Manual Wire De-coiler

Optional Accessories with Lathe Type CNC Spring Coiling Machines

• Additional Tooling set

Note: Specification of Machines and Design are subject to change without prior notice.

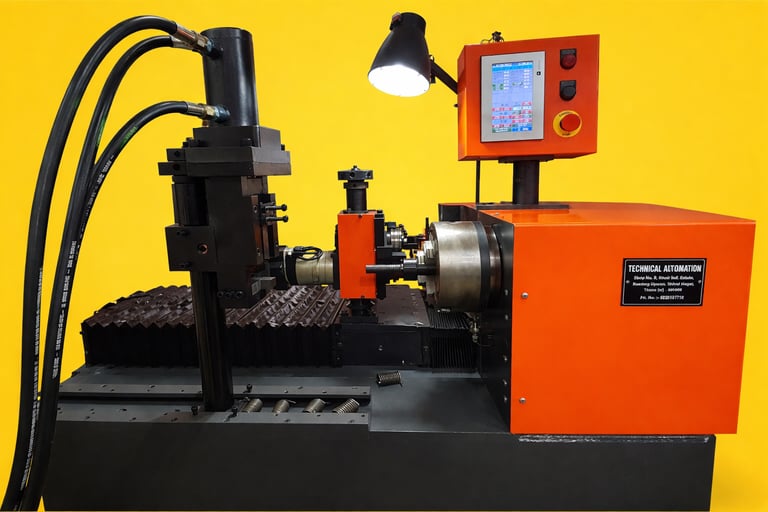

Lathe Type CNC Spring Coiling Machine

Model : LT8

Axis: 3- axis

Spring Wire Diameter: 3.0 to 8.0 mm spring steel wire

Spring External Diameter: 80mm

Spring Length: Max 600mm with auto cutting 250mm

Voltage: 415V single Phase

Weight: 800 kgs
